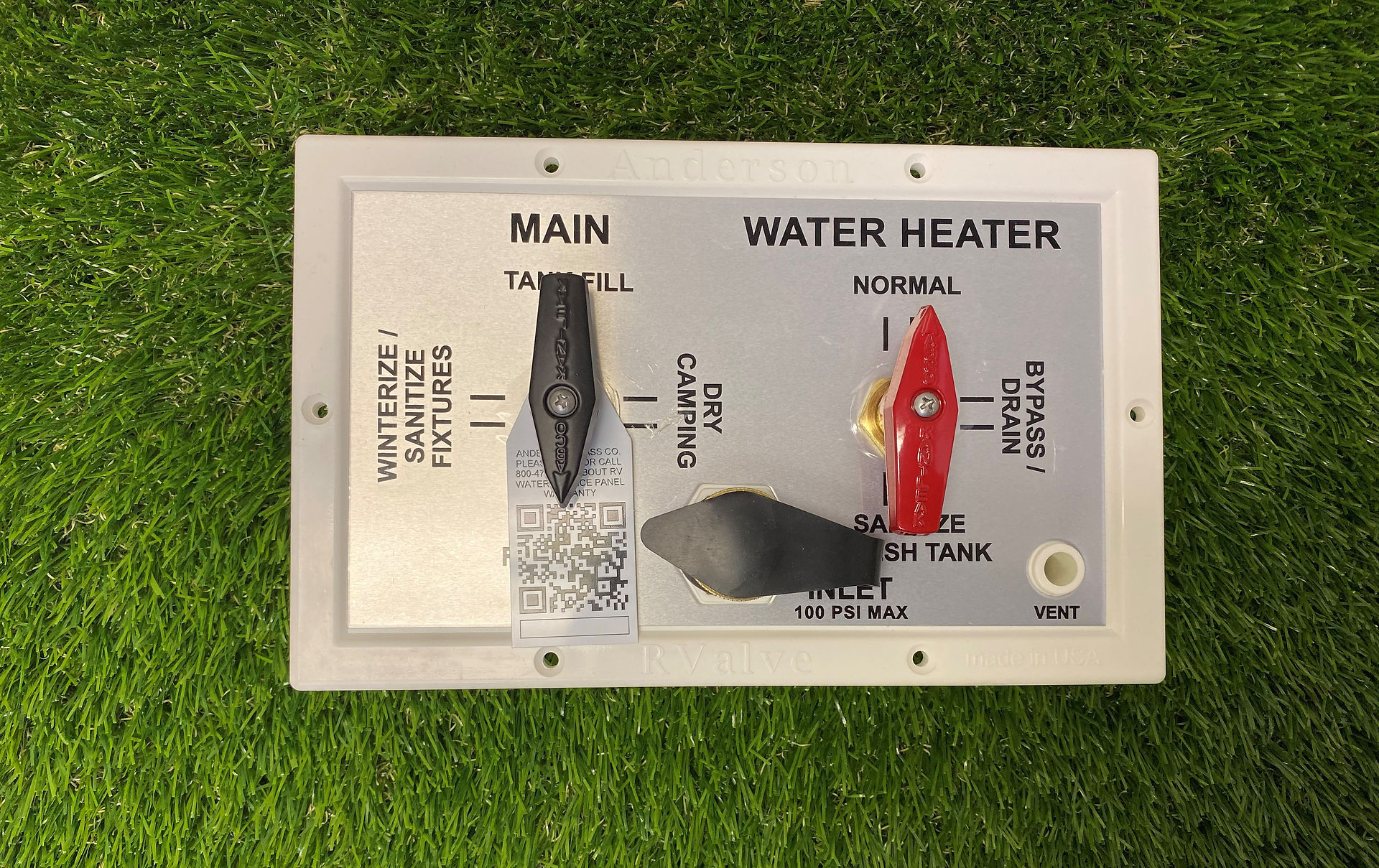

What is a RV water service panel and why is ours different?
An RV water service panel has a water diverter valve, city water inlet, vent, and some models have a water heater bypass. The water diverted valve has four functions.
4 FUNCTION FILL VALVE SUPPLY
CITY FIXTURES - Supply water to the fixtures directly from the city water hook up.
DRY CAMPING - Supply water to the fixtures directly from the on-board tank.
TANK FILL - Supply water to the holding tank from the city water hook up.
SANITIZE / WINTERIZE - Supply sanitizing / winterizing fluid to the fixtures from inlet connection (via pump).
The water heater bypass valve has two or three functions depending on the model.
3 FUNCTION WATER HEATER BYPASS
NORMAL - Supply cold water to the water heater and supply hot water to the fixtures.
BYPASS / DRAIN - Divert cold water to the "HOT" fixtures isolating the water heater.
SANITIZE FRESH WATER TANK - Supply sanitizing fluid to the tank from inlet connection (via pump). (available on MANRV102-1RF)
ABCO RV water service panels go above and beyond industry standards.
Built with industrial multi-port brass valves
Backed by a 5 year warranty
Designed, tested, manufactured and assembled in the USA
Customizable to fit consumers needs
,
